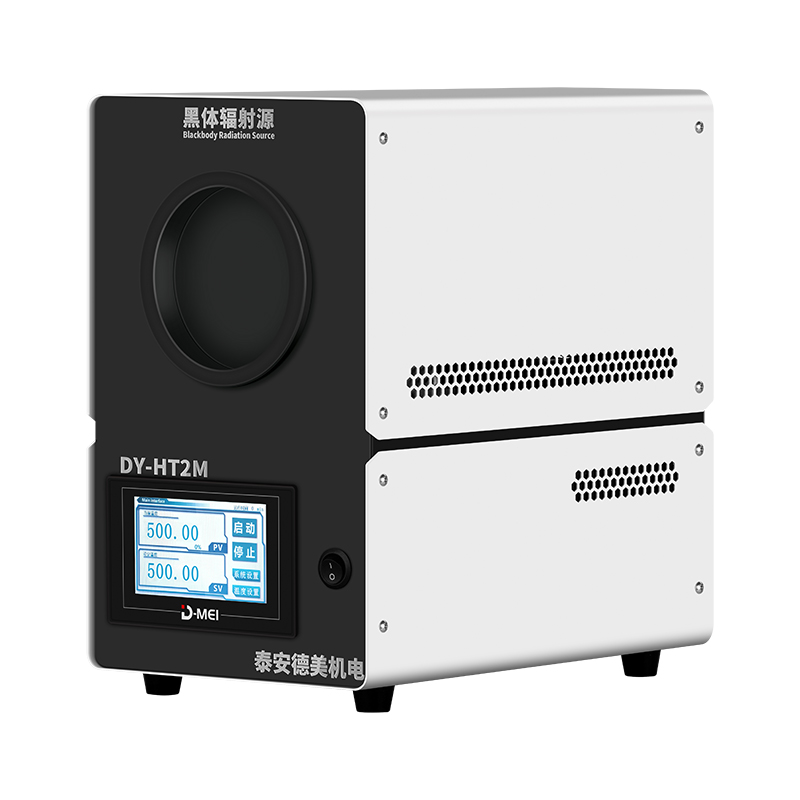

The surface source blackbody radiation source is a standard for infrared radiation. It is widely used in the technical index test of the process test and the qualification test during the development of the infrared detector. It can complete the response uniformity, response curve and death of the photosensitive surface of the infrared focal plane device. In the test of parameters such as element pixels. At the same time, the area source blackbody radiation source is the core equipment of the infrared imaging prism collimation device, and it cooperates with the infrared collimation optical system and infrared target to complete the key technical index test and performance evaluation of the infrared imaging system. It can meet the testing requirements of infrared imagers in my country's newly developed infrared imaging guided weapons, and can meet the testing requirements of infrared thermal imaging cameras that are widely used in medical, construction, security monitoring, environmental testing and other industries.
[Technical Indicator]
Model
DY-HT2MA
DY-HT2MB
Temperature Range
Indoor Temperature +5℃~300℃
Indoor Temperature +5℃~400℃
Control Mode
Touch Screen
Touch Screen
Temperature Resolution
0.1℃
0.1℃
Temperature Control
PID Automatic Control
PID Automatic Control
Radiating Surface
φ100mm
φ100mm
Emissivity
≥0.95
≥0.95
Temperature Stability
Larger than 0.15℃ and 0.15% T (T is the radiation source temperature)
Larger than 0.15℃ and 0.15% T (T is the radiation source temperature)
Power Supply
220V AC 10A
220V AC 10A
Wire Line Diameter
≥1.5㎡
≥1.5㎡
Power
800W
800W
Dimension(L×W×H)
315mm×200mm×340mm
315mm×200mm×340mm
Weight
8Kg
8Kg
Environment
25-35℃;25%-50%RH;High 2000m
25-35℃;25%-50%RH;High 2000m
Note: other special requirements can be customized according to the needs of users
