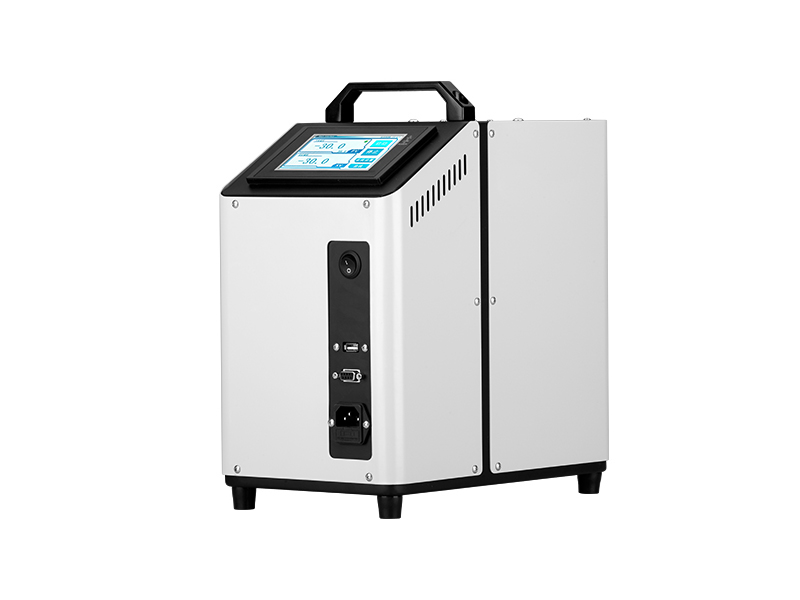

DY-GTLB Transformer Oil Level Thermometer Detection Device(0℃-150℃)

◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

The transformer thermometer on-site testing device can provide a stable, uniform and accurate temperature environment (temperature field), providing similar to the performance of constant temperature tank (bath tank), but the transformer thermometer on-site testing device is easy to carry, do not need to place liquid.

The field testing device of transformer thermometer reaches the predetermined temperature point and the time of temperature stability is 5 to 10 times faster than that of constant temperature tank, which can greatly save the time of calibrators and improve the speed of temperature verification.

The portability of the transformer thermometer on-site testing device enables it to be calibrated on site conveniently and quickly.

[Product Features]

1. Humanized design, 4.3-inch touch screen operation, convenient and quick

2, the use of advanced modular structure, easy maintenance;

3. Test port with standard thread, compact and fixed;

4, heating and cooling direct operation, heating and cooling quickly;

[Technical indicators]

◆ Temperature control range: (0~+150) ℃

◆ Resolution: 0.1℃

◆ Stability: ±0.2℃

◆ Accuracy: ±0.5℃

◆ Control mode: touch screen

◆ Check hole depth: 150mm

◆ Soaking block diameter: 15mm

◆ Power supply: 220V AC 50Hz

◆ Power consumption: ≤500W

◆ Heating speed: ≥5℃ per minute

◆ Cooling speed: ≥1℃ per minute
