◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

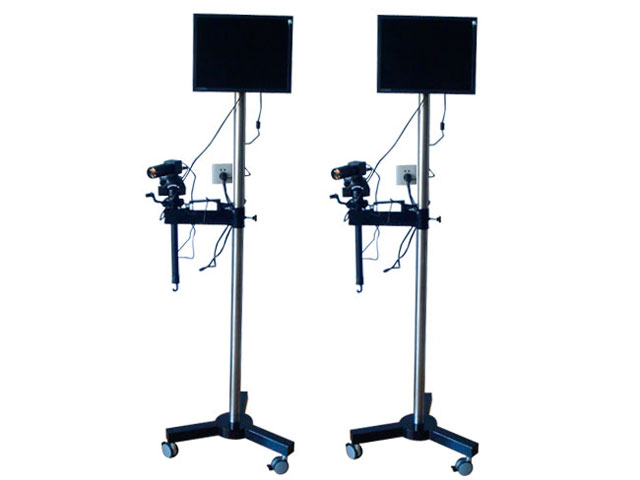

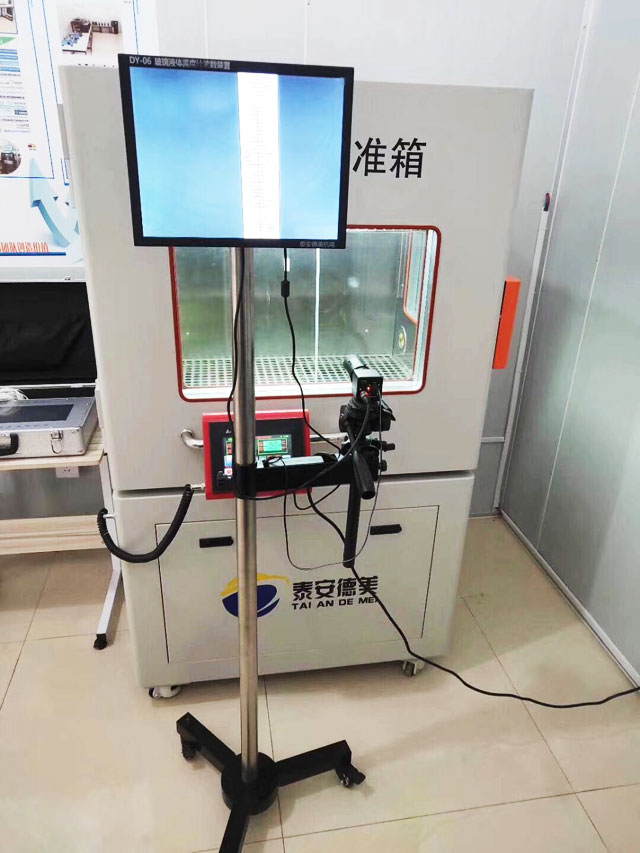

DY-06 glass liquid thermometer reading device is designed for the detection of glass thermometer is a new type of reading device using CCD technology, which is composed of CCD camera, high power optical lens, CCD camera bracket, industrial LCD, connecting cable and special power supply.

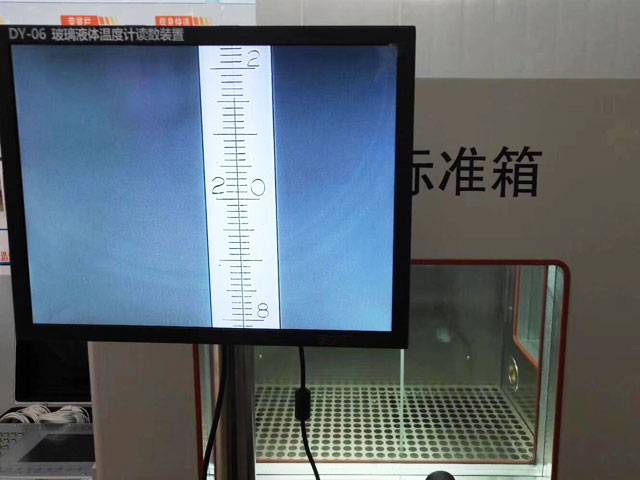

Amplify the thermometer scale line and display it on the monitor, so that the marking line can be clear at a glance at the position of the thermometer.

Completely solved many disadvantages of reading telescope: reading hard, only one person to watch, large labor, image inversion and a series of problems.

[Product Features]

? stainless steel coating stent, appearance is beautiful and easy;

? image acquisition to adjust sensitivity, strong practicability;

? observation field is big, can be observed at the same time by one or more people;

? reduce bulky error, reduce the labor intensity of inspection personnel;

? adopts high power optical lens and zoom extension, magnification, image is clear, accurate readings.

? 15 inch industrial high-performance LCD screen, reasonable size, compact structure, easy to put;

[Technical indicators]

? appearance size: 540 * 540 * 1600 mm

? weight: 5000 g

? power supply: 220 vac

? display: contrast 3500:1, the standard resolution 1024 (H) x 768 (V) 0

? industrial camera: 752 pixels (H) X582 (V), intensity of illumination minimum 0.0005 lux at pro series

The advantages and features of the monitor

? 15 inch size is reasonable, compact structure, easy to put; High strength steel shell, can provide good protection; Professional chip and processing technology to ensure high picture quality; High reliability, stability, especially suitable for harsh industrial environment;

? industrial-grade high-performance LCD screen, to ensure that high-definition, high stable image; A variety of signal input/output interface, support a variety of signal input/output;

? industrial level metal shell integration design, with excellent protection grade and electromagnetic shielding performance, industrial paint, simple, generous appearance, combined with the host.

Advantages and features of industrial cameras

? adopt industrial color sensor has high precision, better life, better reliability and stability.

? DSP-digital signal processing technology, make the image more clear, delicate, contour more trenchant, manic ratio, contrast is stronger.

? good to eliminate the interference signals in ultrasound, images with high quality and high sensitivity.

? using 3d digital manic reduction system, image edge sharpness compensation function, can obtain a clearer picture.

? automatic gain control, advanced digital backlight compensation function.

? manual electronic shutter control, manual strong inhibitory control, manual white balance control.

? fluorescent lighting when floating color phenomenon, the image is more stable;

Multi-speed electronic shutter, clear capture of moving workpiece on the assembly line.

? with locking, tracking the white balance, color is more natural, manual white balance adjustment, more accurate color reproduction.

? pixel 752 (H) X582 (V).

? manic ratio More than 52 db.

? illuminance threshold 0.0005 lux at pro series.

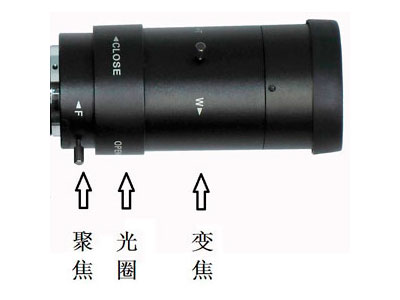

Advantages of industrial lens features

? adopt industrial high-precision color sensor.

? low deformation rate (less than 1.0%).

? focus and aperture lock screw.

? within the scope of the entire screen has high contrast and clear image.

? compact design.

? object distance limit: 0.3 m

? adjust order: the analyte to adjust the zoom closer distance, to adjust the focus make the image clear.

? aperture should be according to the indoor light shade.
